Description

The pro choice for any artist who wants to be able to adjust the stroke length and give of their machine, on-the-fly, without the use of any tools. It comes with a high-quality custom made 8 Watts motor that can easily handle any cartridge configuration and tattooing style.

Description

Featuring a wide stroke-length range, in combination with the adjustable give the Spear is known for, you don’t need separate machines for each task anymore. Smooth shading, rich color packing and crispy, bold, one-pass lines every time.

It comes with a custom-made 8 Watts motor that can easily handle any cartridge configuration and type of work. The stroke length can be set from 2.5 mm all the way to 4.5 mm and anywhere in between. Just rotate the motor housing part, even while working. Setting up the Give follows the same procedure, just rotate the RCA housing part at any time. When its fully tightened the machine hits hard and it softens as you loosen it.

Finally, the protected RCA socket is gold plated and the grip is designed in a way to nicely rest in your hand and to keep the machine from rolling off of any surface. With its comfortable shape and ergonomic grip, low noise and vibration, the Thorn 2.0 allows the artist to produce immaculate work, effortlessly, all day long.

The Spear 2.0 is compatible with all standard type needle cartridges. However, it is not compatible with Stigma-Rotary® Advanced Safety Cartridges.

Key Features

  • Adjustable stroke length
  • Adjustable Give (Hard -> Soft)
  • Can be used for all types of work
  • Ergonomic shape & Anti-Roll design
  • Compact & lightweight
  • Low vibration
  • Gold plated & protected RCA socket
  • Disposable grips available
  • Accepts all major brand cartridges

Technical Specifications

  • Motor: DC Coreless @ 8 Watts
  • Suggested Voltage range: 5 – 10 V
  • Suggested Frequency range: 65 – 160 Hz
  • Stroke length range: 2.5 mm – 4.5 mm (Stepless)
  • Give adjustment: Stepless
  • Needle depth: 0 – 4.5 mm (Stepless)
  • Length: 112 mm
  • Weight: 165 g
  • Min. – Max. Diameter: Ø 30 mm – Ø 32 mm

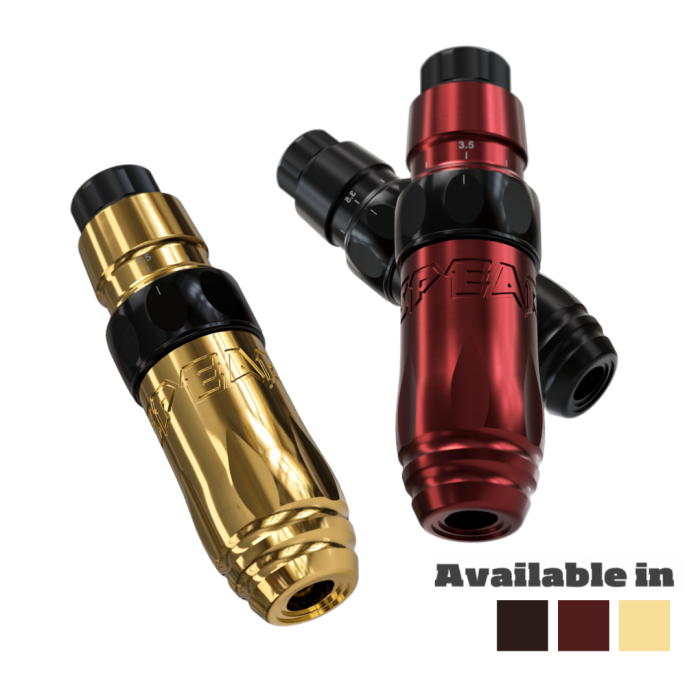

  • Color: Black, Red
